Denver Series
3-part ball-bearing construction. Full extension. 45 kg load capacity per pair. Available in 11 sizes — 250mm to 750mm.

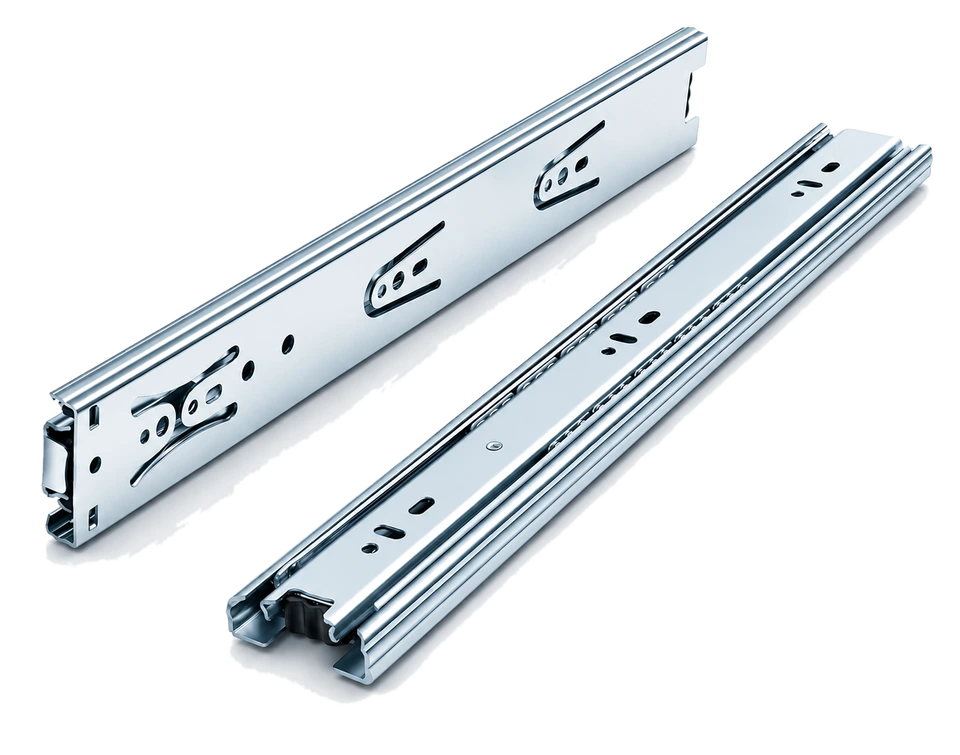

3-part telescopic ball-bearing construction
Denver Series · 45 kg
Three cold-rolled steel rails with precision ball-bearing cages deliver a glide so smooth, it redefines what a drawer should feel like. Full extension means complete access to every last centimetre at the back of the drawer — no more reaching into the dark.
Ideal For
Denver Series
The Denver 45 uses a 3-part telescopic design where each rail slides independently within the next, guided by precision ball-bearing cages that eliminate friction and rattle.
Mounted to the cabinet side panel. Does not move. Provides the structural anchor for the entire assembly.
Precision steel ball bearings between each rail eliminate metal-to-metal contact, preventing wear and ensuring a perfectly smooth glide.
Slides within the outer rail on ball bearings. Carries the inner rail and the drawer itself. Provides the first stage of extension.
Attached to the drawer box. Slides out fully on the middle rail to deliver 100% extension — complete access to the entire drawer depth.
Denver Series
The Denver 45 is available in Zinc (silver) and Black. Both finishes undergo an electroplating process that protects the steel body against moisture, humidity, and corrosion.
Finish Comparison
Zinc (Silver)
Electroplated zinc coating. Classic silver appearance. Suits most furniture styles. Starting from ₹210/pair.
Black
Matte black powder coat. Modern, contemporary look. Pairs with dark-finish furniture. Starting from ₹240/pair.
Denver Series
MRP per pair, inclusive of GST. Sold in pairs only. Contact us for dealer and project pricing.
| Size | Zinc (Silver) | Black |
|---|---|---|
| 250 mm | ₹210 | ₹240 |
| 300 mm | ₹230 | ₹265 |
| 350 mm | ₹255 | ₹295 |
| 400 mm | ₹280 | ₹320 |
| 450 mm | ₹310 | ₹355 |
| 500 mm | ₹340 | ₹390 |
| 550 mm | ₹375 | ₹430 |
| 600 mm | ₹415 | ₹475 |
| 650 mm | ₹455 | ₹520 |
| 700 mm | ₹498 | ₹568 |
| 750 mm | ₹545 | ₹620 |
* MRP per pair, incl. GST. Sold in pairs only. Dealer pricing available on request.
Denver Series
Denver 45 runners use a standard side-mount installation. The process takes under 10 minutes per drawer with basic tools.
Press the release tab and slide the inner rail out from the outer/middle assembly. You will have two pieces: the outer+middle pair (for the cabinet) and the inner rail (for the drawer).
Screw the outer rail assembly to the cabinet side panel. Ensure both sides are level and at the same height. Use a spirit level — alignment is critical for smooth operation.
Screw the inner rail to each side of the drawer box. Position 12.5mm from the drawer side to allow for the runner body width. Ensure equal height on both sides.
Align the inner rail with the outer assembly and slide in until it clicks into place. Open and close the drawer several times to verify smooth operation.
